GARVEE GARVEE-Axis Power Feed for Power Milling Machines, Adjustable Speed Table Milling Machine Power Feed, Perfect for Bridgeport and Similar Knee-Type Mills, 450 LB Torque, 110V, 0-200PRM
-
Free Shipping & Get Your Order Between Nov 06 - Nov 10
-
Easy Returns
Hassle-free 30 days returns. Learn More
GARVEE GARVEE-Axis Power Feed for Power Milling Machines, Adjustable Speed Table Milling Machine Power Feed, Perfect for Bridgeport and Similar Knee-Type Mills, 450 LB Torque, 110V, 0-200PRM
People Also Bought

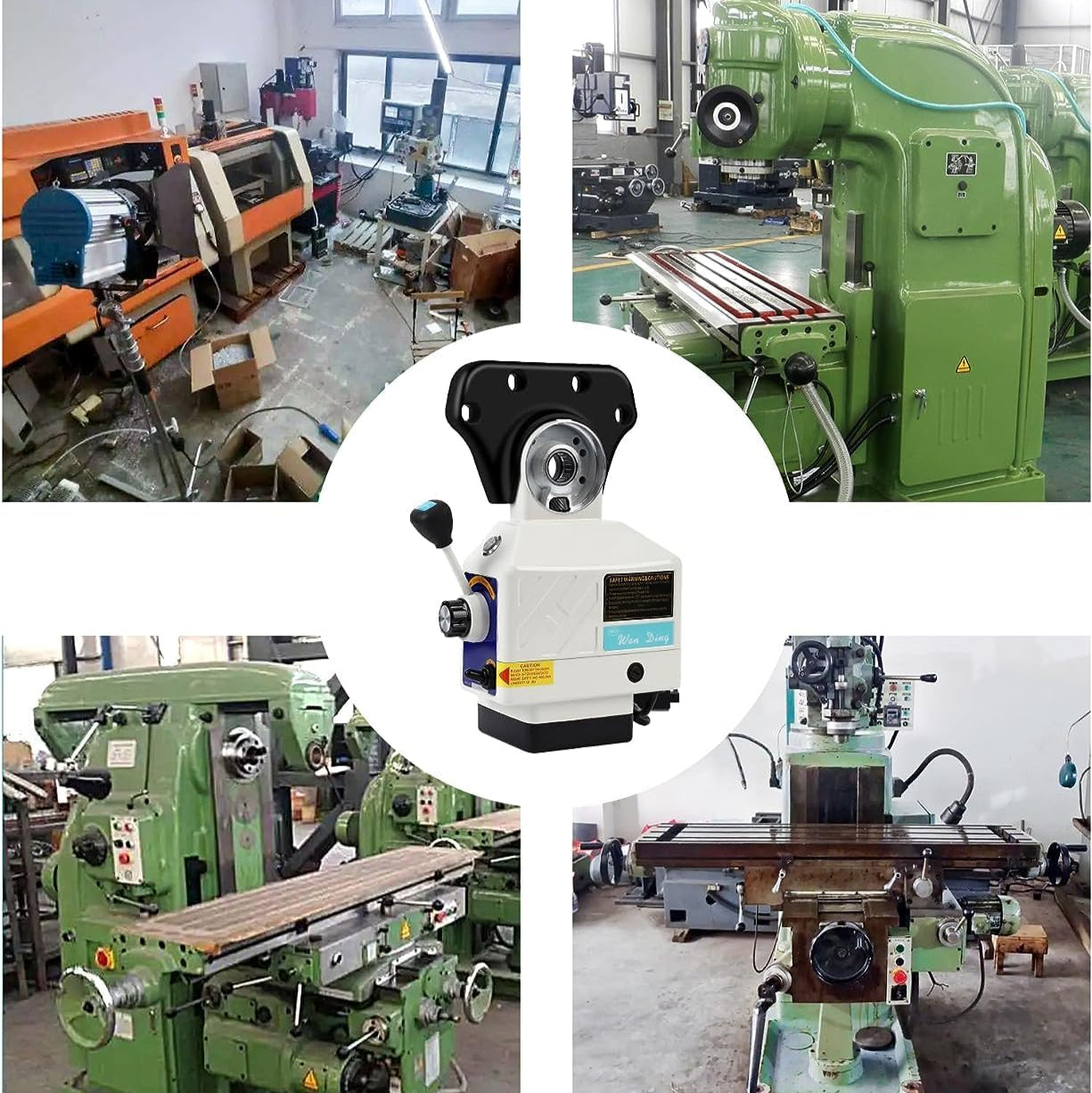

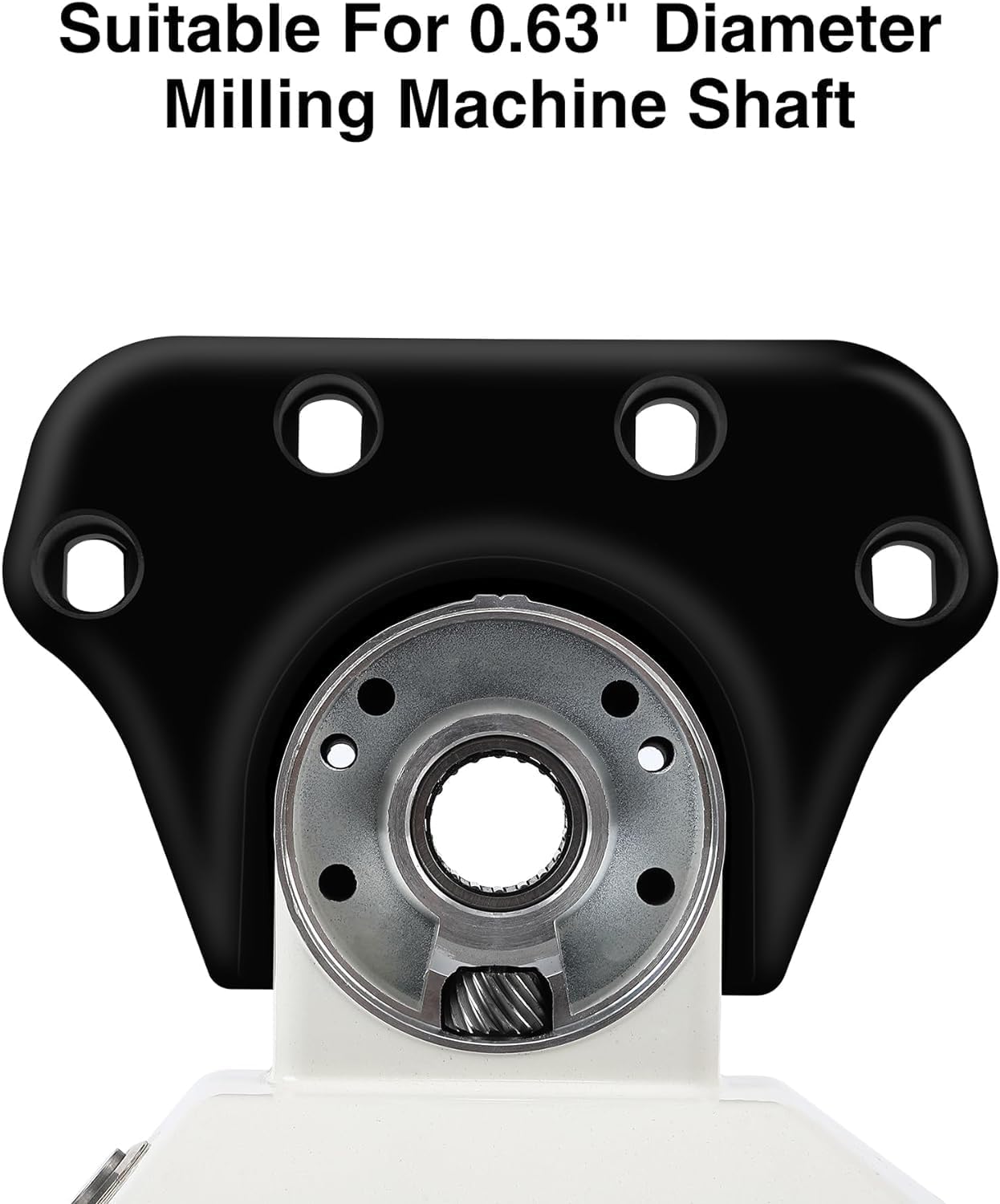

- 【Universal Milling Machine Power Feed】This power feed is designed for popular milling machines like Bridgeport, Precision Matthews, Enco, Jet, Sharp, Acer, and Webb. It fits vertical knee-type mills with the same mounting pattern and a 5/8" diameter shaft, ensuring compatibility with a wide range of machines.

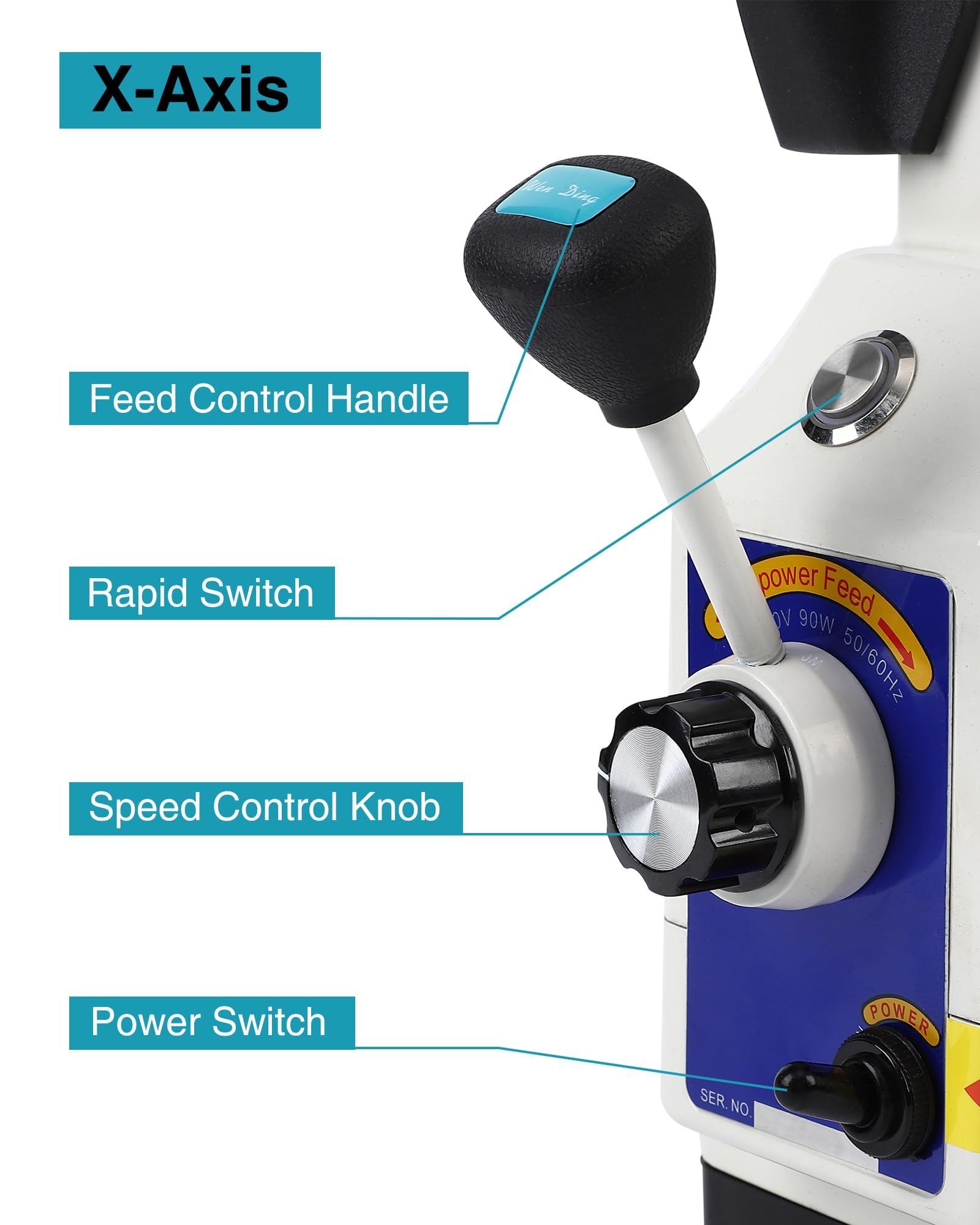

- 【Versatile Control Options】This power feed offers both automatic and manual control modes. Utilize automatic constant speed for hands-free operation, or manually adjust the speed control knob for precise milling work. This flexibility allows you to tailor the power feed's performance to meet your specific requirements.
- 【Smooth and Reliable Performance】Equipped with a Gleason Spiral Bevel Gear, this power feed ensures stable transmission, low noise, high efficiency, and strong bearing capacity. It operates smoothly and efficiently, even during rapid transmission. Plus, a dedicated safety feature safeguards the transmission plastic gear and electronic components from damage in the event of collisions or sudden reversals.

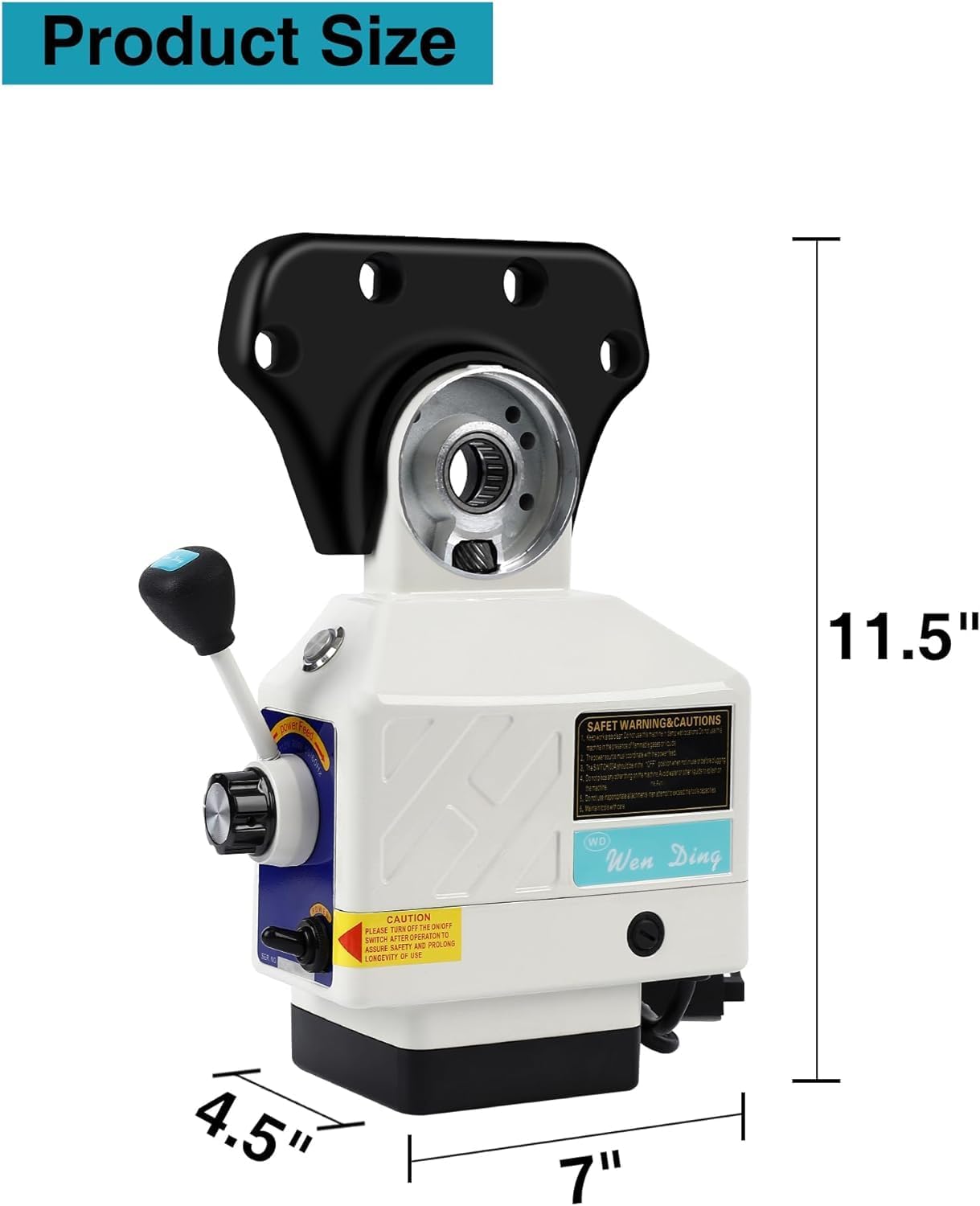

- 【Compact and User-Friendly】At just 11lbs and with dimensions of 7*4.5*11.5 inches, this portable power feed is easy to handle. Whether you're new to machining or a seasoned pro, the installation process is straightforward and hassle-free.

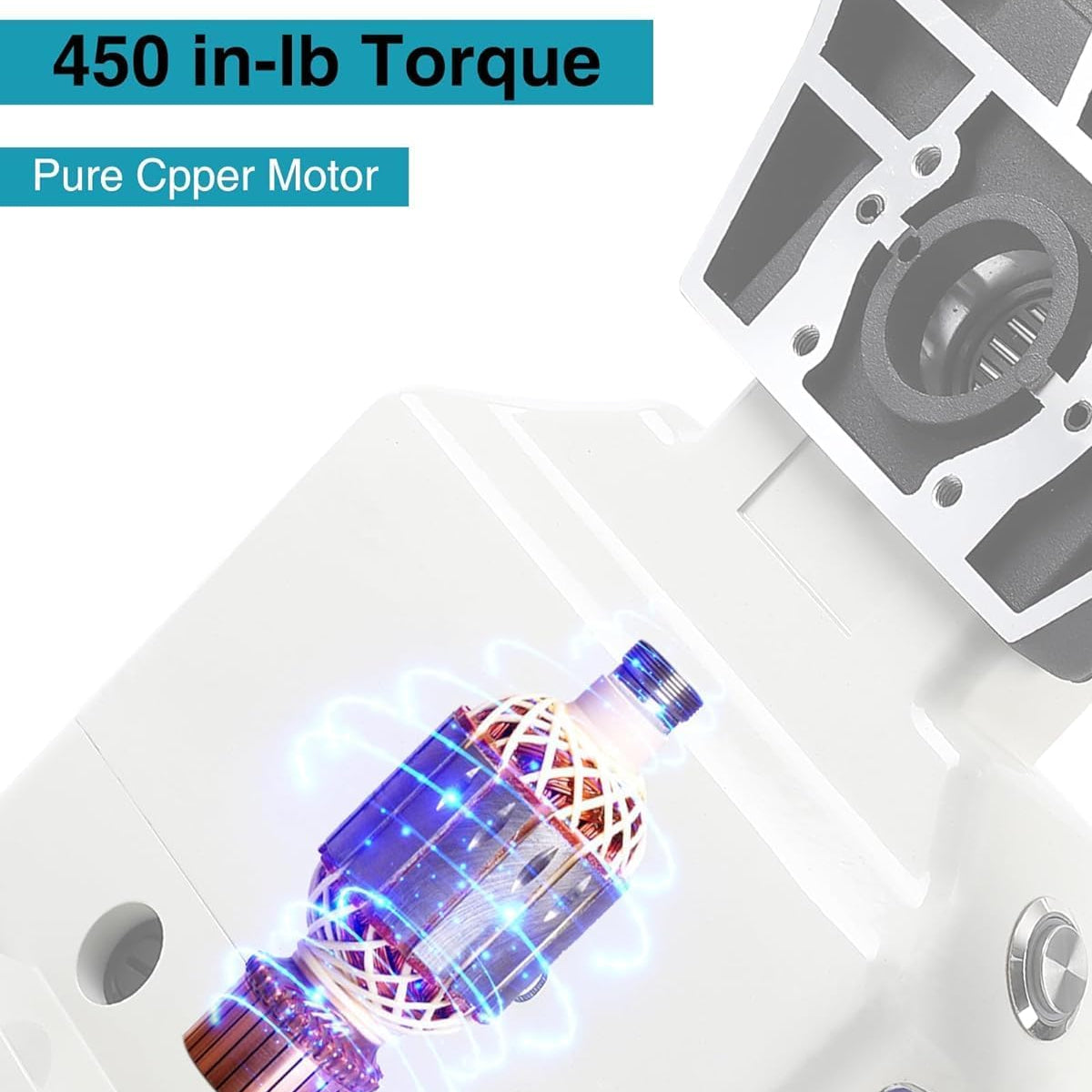

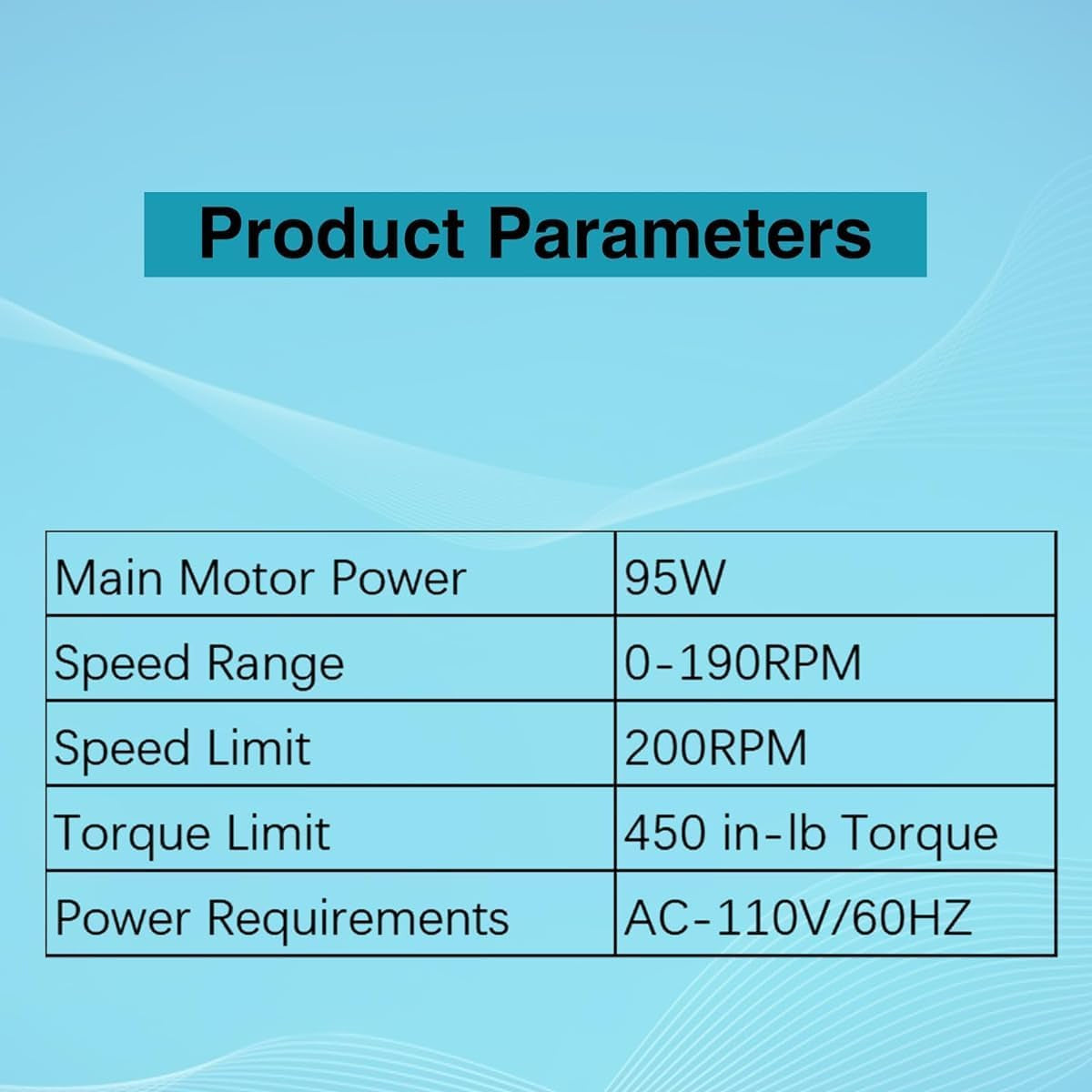

- 【Robust Power Performance】Operating at 95 Watts and designed for 110V input voltage, this power feed is suitable for a 50/60Hz single-phase power supply. It offers an adjustable rotate speed from 0 to 200 RPM, delivering a maximum torque of 450in-lb. With a maximum feed rate of 650mm/min and a maximum return speed of 850mm/min, it ensures efficient and accurate milling operations.
Specifications
| Part Number | PFE-X-M1P |
| Item Weight | 11 pounds |
| Product Dimensions | 15.4 x 13 x 7 inches |
| Style | X-Axis |
| Power Source | ac |
| Item Package Quantity | 1 |
| Included Components | power feed |
| Batteries Required? | No |
Reviews
Customer Reviews
Required some additional work to mount. I had to make a special bearing race 1/2 inch longer than supplied and a shim for the dial nut. Other than that it fit and is working fine on my ZX5051 Chinese mill simular to the Grizzly mini mill.
Required some additional work to mount. I had to make a special bearing race 1/2 inch longer than supplied and a shim for the dial nut. Other than that it fit and is working fine on my ZX5051 Chinese mill simular to the Grizzly mini mill.
Works great, feeds consistently. Wish it had a feed speed rate display.
Works great, feeds consistently. Wish it had a feed speed rate display.
Removing the old one and getting the new one in place was perfect, even for an upgrade!
Replaced the Grizzly unit on my milling machine that lasted about 20 years. While it fit and does the job, I had to machine a spacer to cover a small gap between the unit and the bed. Not a problem as all mills are slightly different,Only complaint is the difficulty to run the unit at a slow speed. Speed adjuster seems to favor high speeds. Very slow speeds are hard to set.
Replaced the Grizzly unit on my milling machine that lasted about 20 years. While it fit and does the job, I had to machine a spacer to cover a small gap between the unit and the bed. Not a problem as all mills are slightly different,Only complaint is the difficulty to run the unit at a slow speed. Speed adjuster seems to favor high speeds. Very slow speeds are hard to set.
I used this for a Rug Fu style round post milling machine. It wasnt designed for this machine, so it took some creativity to make it work. Quality seems very good. As long as you have some common sense and mechanical skills, you can get this to work on most any mill. Would buy again.
